Data displays

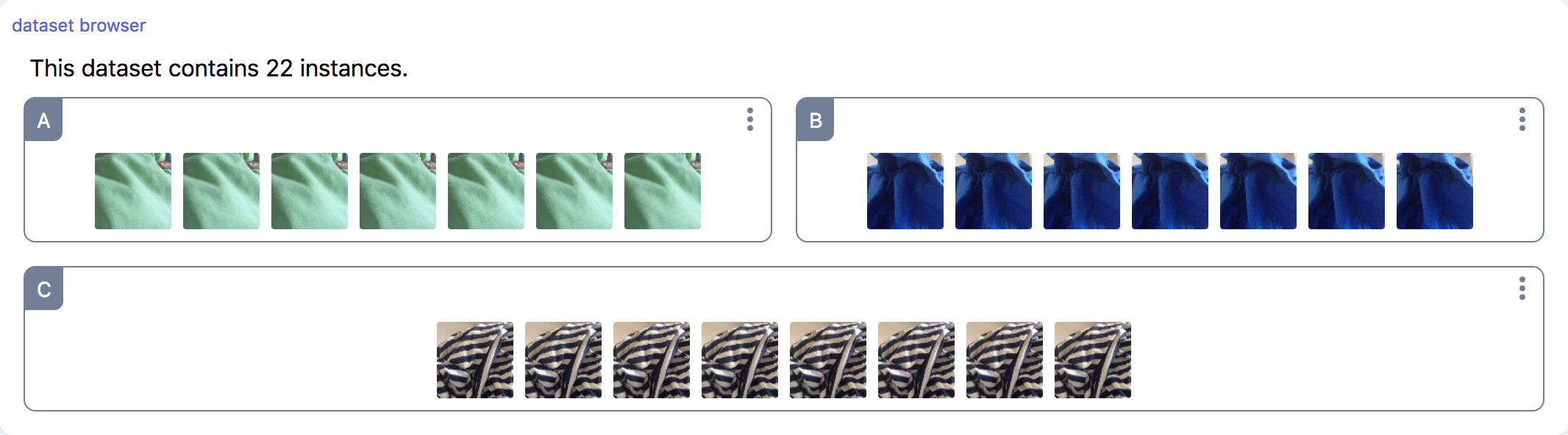

datasetBrowser

datasetBrowser(
  dataset: Dataset<InputType, string>,
  options: {
    batchSize: number;
  }): DatasetBrowser;

A Dataset browser provides an interface to visualize the contents of a dataset. It takes a dataset as argument, assuming that each instance contains a thumbnail property that can be displayed as an image (typically, a base64 dataURI).

Parameters

Screenshot

Example

const trainingSetBrowser = marcelle.datasetBrowser(trainingSet);
dashboard.page('Data Management').use(trainingSetBrowser);

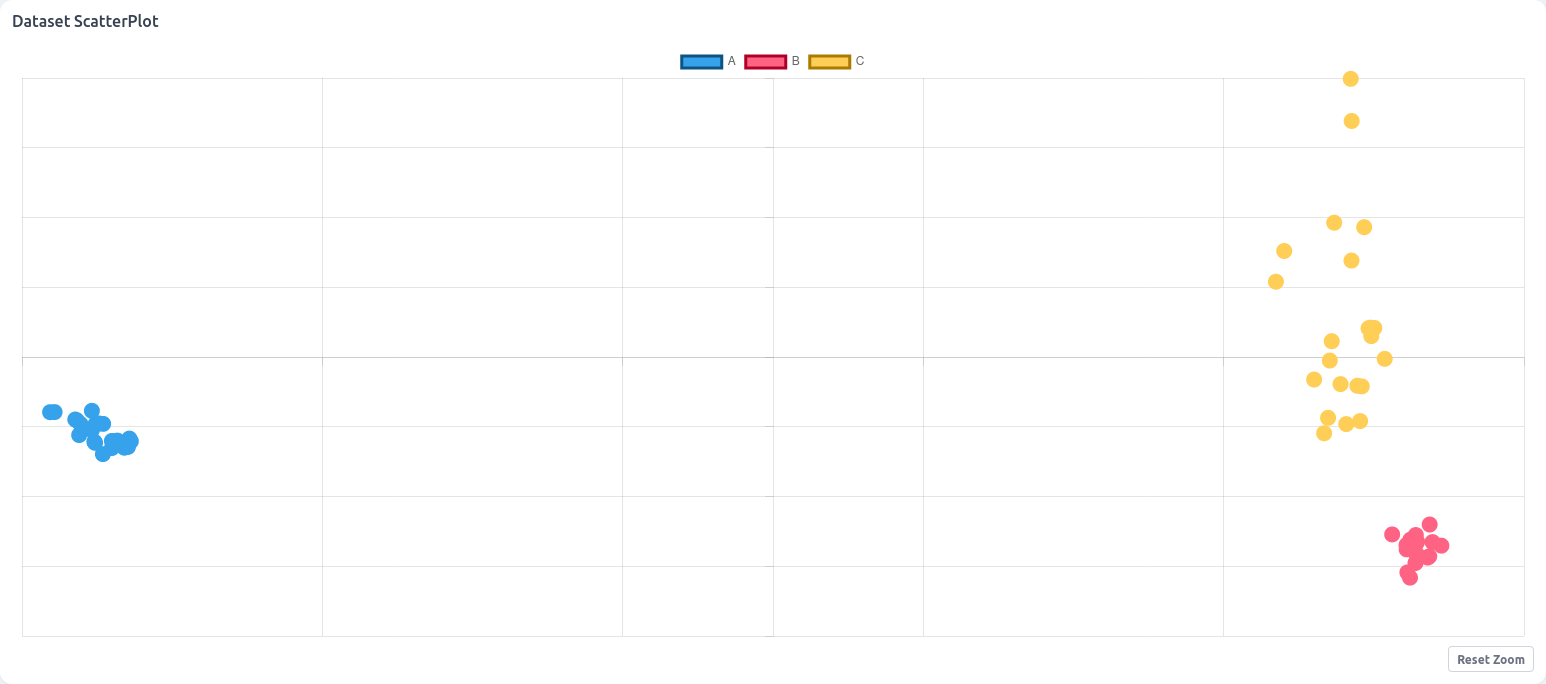

datasetScatter

datasetScatter<T extends Instance>(
  dataset: Dataset<T>
): DatasetScatter<T>;

Visualize the contents of a dataset using a scatter plot visualization. The mapping between the fields of dataset instances and the x, y position, as well as the label, can be specified using transformer functions.

Parameters

Methods

.setTransforms()

setTransforms(t: Partial<Transforms<T>>): void;

Set one or several data transformations for xy coordinates, and label. Transforms have the following signature:

interface Transforms<T extends Instance> {
  xy: (value: T) => [number, number] | Promise<[number, number]>;
  label: (value: T) => number | string | Promise<number | string>;
}

Screenshot

Example

const trainingScatter = marcelle.datasetScatter(trainingSet);
dashboard.page('Data Management').use(trainingScatter);

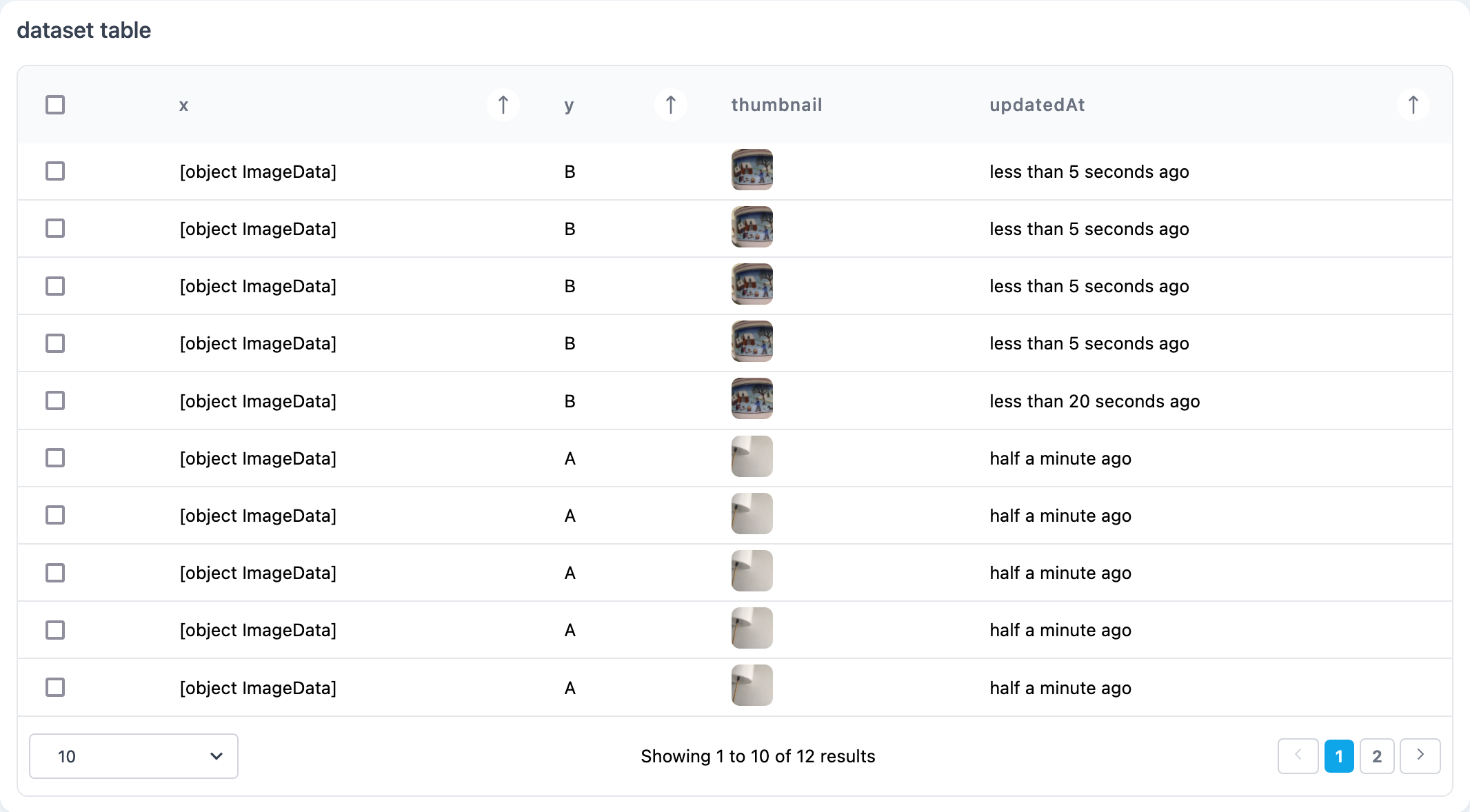

datasetTable

datasetTable(
  dataset: Dataset,
  columns?: string[],
): DatasetTable

This components provides a visualization of a dataset as a paginated data table, where each row describes an instance. It takes a dataset as argument, and optionally the list of columns to display.

Parameters

Screenshot

Example

const tst = marcelle.datasetTable(trainingSet);
dashboard.page('Data Management').use(tst);

imageDisplay

marcelle.imageDisplay(
  imageStream: Stream<ImageData> | Stream<ImageData[]>
): DatasetBrowser;

An Image Display allows for displaying an image on screen provided by an input stream.

Parameters

Example

const source = imageUpload({ width: 224, height: 224 });
const instanceViewer = marcelle.imageDisplay(source.$images);
dashboard.page('Data').use(instanceViewer);

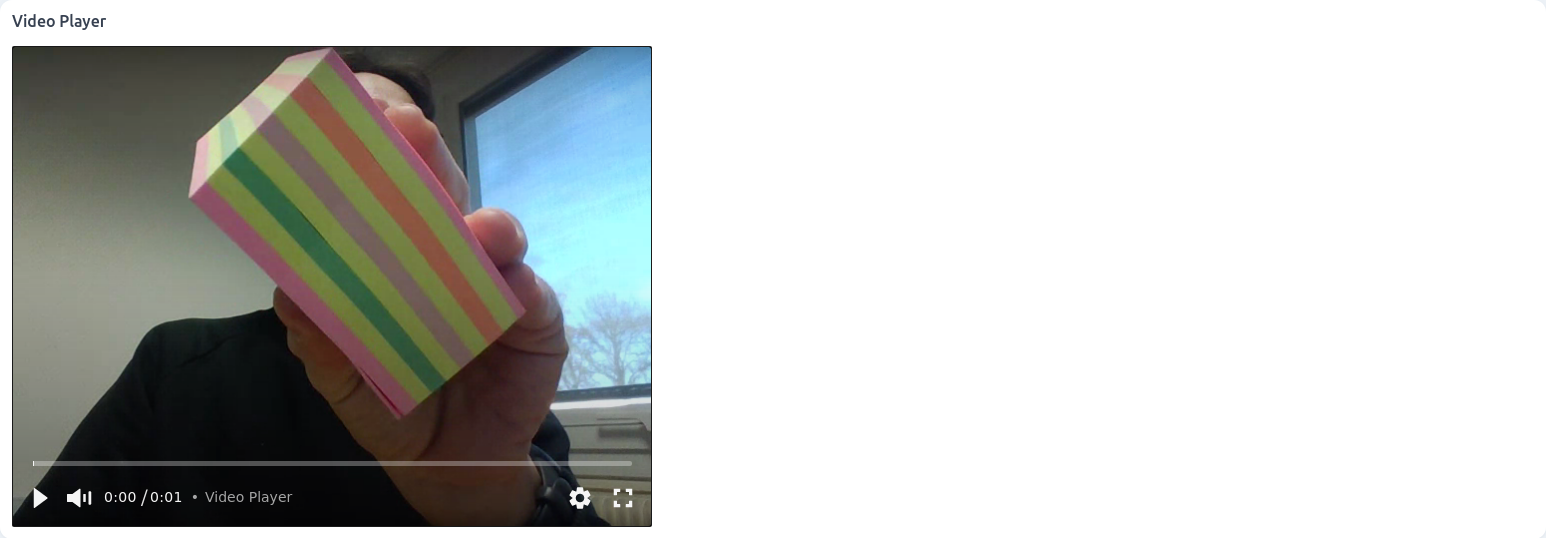

videoPlayer

marcelle.videoPlayer(src: string): VideoPlayer;

A simple video player.

Parameters

Screenshot

Example

const player = videoPlayer();
player.$src.set('http://localhost:3030/assets/65533254bbcc10126bd44ad3/asset.webm');
